PROGRAMMING¶
1 PREPARATION¶
1.1 Install VSCode¶
-
VSCode

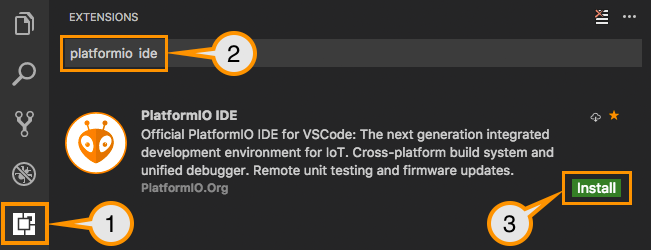

1.2 Install PlatformIO¶
(1) Open VSCode Extension Manager
(2) Search for official PlatformIO IDE extension
(3) Install PlatformIO IDE.

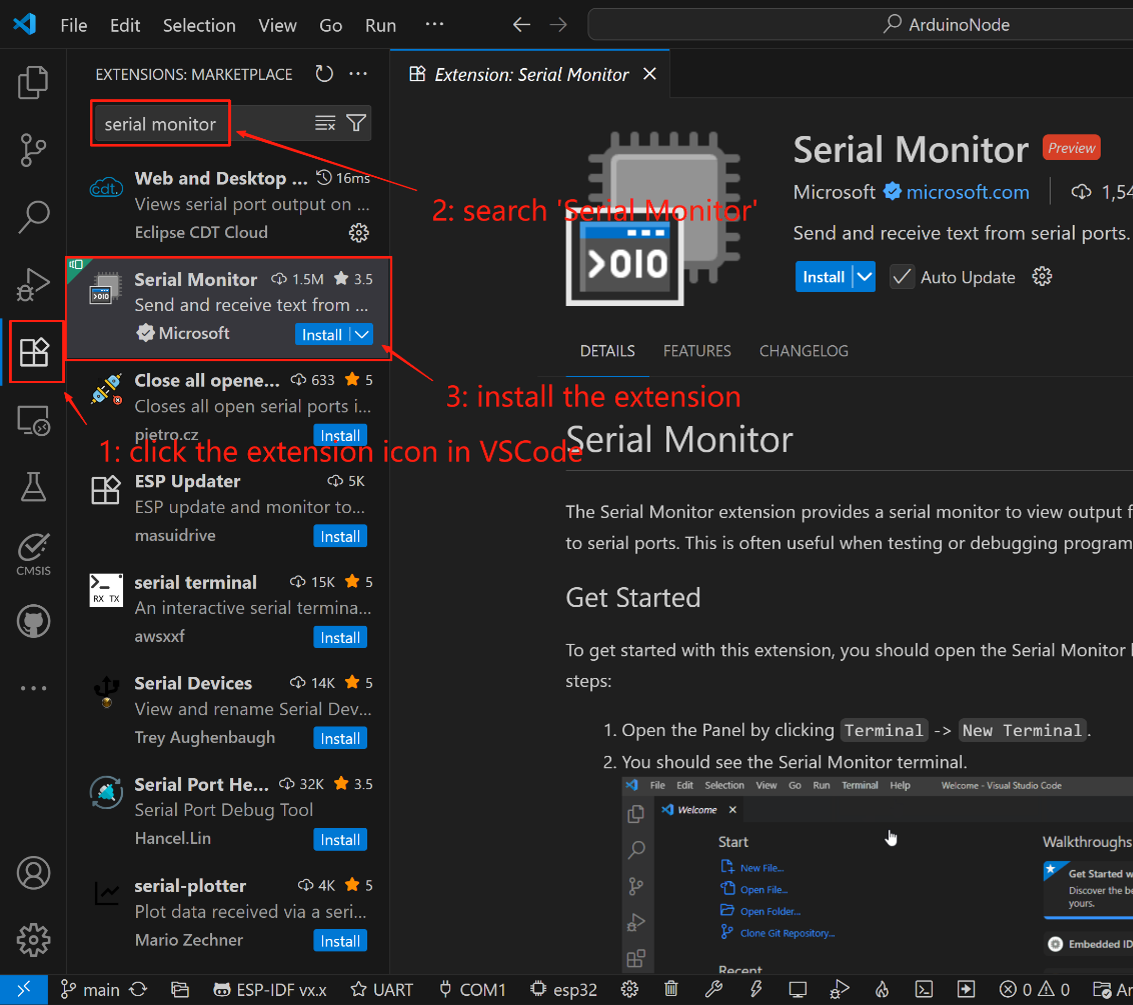

1.3 Install Serial Monitor¶
(1) Open VSCode Extension Manager
(2) Search for official Serial Monitor extension
(3) Install Serial Monitor extension.
1.4 Download Project Code¶
-
GitHub
Tip
Simply click the download button to download the project code zip file.
After downloading, extract the files to your chosen directory.
2 PROGRAMMING¶
2.1 Open Project in VSCode¶
(1) Launch VSCode.
(2) Open the folder where you extracted the project code.
(3) You should see the project structure in the Explorer panel.
2.2 Modify Configuration¶
You need to modify the src/config.hpp
file to set the appropriate information for your node. Open the src/config.hpp
file and locate the following code segment:
#pragma once
#include <Arduino.h>
/* Node Information */
// #define GATEWAY // for main node
#define LEAFNODE // for sensor node
// #define NODE_ID 100 // GATEWAY should be 100
#define NODE_ID 1 // for LEAFNODE: 1, 2, 3, 4, 5, 6,
// #define NODE_ID 2
// #define NODE_ID 3
// #define NODE_ID 4
// #define NODE_ID 5
// #define NODE_ID 6
#define NUM_NODES 6 // Total number of nodes in the network
/* WiFi Credentials */
#define WIFI_SSID "Shaun's Iphone"
#define WIFI_PASSWORD "cshw0918"
/* MQTT Configurations */
// #define MQTT_CLIENT_ID "GATEWAY"
#define MQTT_CLIENT_ID "LEAFNODE1"
// #define MQTT_CLIENT_ID "LEAFNODE2"
// #define MQTT_CLIENT_ID "LEAFNODE3"
// #define MQTT_CLIENT_ID "LEAFNODE4"
// #define MQTT_CLIENT_ID "LEAFNODE5"
// #define MQTT_CLIENT_ID "LEAFNODE6"
#define MQTT_BROKER_ADDRESS "8.222.194.160"
#define MQTT_BROKER_PORT 1883
#define MQTT_USERNAME "ArduinoNode"
#define MQTT_PASSWORD "Arduino123"
#define MQTT_TOPIC_PUB "ArduinoNode/node"
#define MQTT_TOPIC_SUB "ArduinoNode/server"
// Sensing Variables
extern uint64_t sensing_scheduled_start_ms; // Scheduled sensing start time (Unix ms)
extern uint64_t sensing_scheduled_end_ms; // Scheduled sensing end time (Unix ms)
extern uint32_t sensing_rate_hz; // Sensing rate in Hz
extern uint32_t sensing_duration_s; // Sensing duration in seconds
extern uint32_t default_sensing_rate_hz; // Default sensing rate in Hz
extern uint32_t default_sensing_duration_s; // Default sensing duration in seconds
extern uint16_t parsed_freq; // Parsed frequency from command
extern uint16_t parsed_duration; // Parsed duration from command
extern float cali_scale_x; // Calibration scale for X-axis
extern float cali_scale_y; // Calibration scale for Y-axis
extern float cali_scale_z; // Calibration scale for Z-axis
/* Serial Configurations */
// #define DATA_PRINTOUT // Enable data printout to Serial
// === Function Declaration ===
void print_node_config();
Now you need to modify the configuration file for each node before uploading the code. Make the following changes:
For the main node (GATEWAY):
-
Uncomment
#define GATEWAY
and comment out#define LEAFNODE
. -
Set
NODE_ID
to 100 and comment out otherNODE_ID
s. -
Set
MQTT_CLIENT_ID
toGATEWAY
and comment out otherMQTT_CLIENT_ID
s.
For the sensor nodes (LEAFNODE):
-
Uncomment
#define LEAFNODE
and comment out#define GATEWAY
. -
Set
NODE_ID
to one of the numbers from 1 to 6, and comment out otherNODE_ID
s. -
Set
MQTT_CLIENT_ID
to one ofLEAFNODE1
toLEAFNODE6
, and comment out otherMQTT_CLIENT_ID
s.
Total Number of Nodes:
- Set
NUM_NODES
to the total number of nodes in the network, e.g., 6.
2.3 Compile and Upload Code¶
Follow the steps below to compile and upload the code:
- Ensure that the development board is connected to the computer via a Type-C cable.
- In the PlatformIO toolbar at the bottom of VSCode, click the "Build" button to compile the code.
- Once the compilation is complete, click the "Upload" button to upload the code to the development board.
2.4 View Serial Output¶
You can use PlatformIO’s built-in serial monitor to view the output from the development board. Click the "Serial Monitor" button at the bottom, select the correct COM port (usually COM3 or a similar name), set the baud rate to 115200, and then click "Connect" to view the output.
Warning
Only one program can access the serial port at a time. Make sure no other programs are occupying the port. Note that when flashing the firmware, you should close any serial communication first, otherwise the upload might fail.
3 TESTING¶
After uploading the code, you can check if the system is functioning correctly by observing the RGB LED colors and the serial output.
Tip
If the RGB LED color is always white, it indicates that there is a problem during the initialization process. Please check the hardware connections. A sky blue state indicates RF communication, meaning it is waiting to communicate with the main node and needs to be tested in conjunction with the main node's signal. Green indicates that initialization is complete and it has entered the IDLE state, waiting for commands from the main node. Yellow is the preparation state before data collection, purple is the state of data collection, and red is the error state, which may be caused by sensor initialization failure or other issues.
