TIME SYNCHRONIZATION¶

Time synchronization is critical for wireless network devices. It ensures time consistency between devices so that timestamps, logging, and other time-related functions of data packets can work correctly. In this project, time synchronization is divided into two parts: the first part is time synchronization with the Internet, and the second part is time synchronization between devices.

The related codes are shown below:

time.hpp

#pragma once
#include <Arduino.h>
#include "config.hpp"
#include "nodestate.hpp"

/*
 * Time synchronization header
 *
 * Provides:
 * - NTP synchronization function
 * - RF-based online check and RTT estimation
 * - Stores RF latency (RTT/2) and online status for each node
 */

/* === RF Time Synchronization Configuration === */
#define RF_PING_PAYLOAD "PING"
#define RF_PONG_PAYLOAD "PONG"
#define RF_TIME_SYNC_HEADER "TIME_SYNC"
#define RF_TIME_ACK_HEADER "TIME_ACK"
#define RF_RESPONSE_WAIT_MS      300   // 300 ms wait per reply
#define RF_RETRY_PER_CYCLE         5   // Retry 5 times per send

extern int32_t node_rf_latency[NUM_NODES + 1];
extern bool node_online[NUM_NODES + 1];

bool sync_time_ntp();
bool sync_check_rf_online();
bool rf_time_sync();

time.cpp

#include "timesync.hpp"
#include "config.hpp"
#include "time.hpp"
#include "rf.hpp"
#include <WiFiUdp.h>
#include <NTPClient.h>

WiFiUDP ntpUDP;
// NTPClient timeClient(ntpUDP, "pool.ntp.org", 28800, 60000);
NTPClient timeClient(ntpUDP, "asia.pool.ntp.org", 28800, 60000);

int32_t node_rf_latency[NUM_NODES + 1] = {0};
bool node_online[NUM_NODES + 1] = {false};

bool sync_time_ntp()
{
    timeClient.begin();
    if (!timeClient.update())
    {
        Serial.println("[COMMUNICATION] <NTP> Failed to get NTP time.");
        return false;
    }

    uint64_t epoch = timeClient.getEpochTime();
    uint16_t current_millis = millis();

    Time.set_time_epoch(epoch);
    Time.last_update_epoch = epoch;
    Time.last_update_ms = current_millis % 1000 + (epoch * 1000); // Convert to ms, keeping current millis for ms part
    Time.mcu_base_ms = current_millis;
    Time.mcu_time_ms = current_millis;
    Time.delta_ms = 0;

    Serial.print("[COMMUNICATION] <NTP> Synchronized UNIX epoch: ");
    Serial.println(epoch);
    Serial.print("[COMMUNICATION] <NTP> Current time: ");
    Time.print();
    return true;
}

bool sync_check_rf_online()
{
#ifdef GATEWAY
    Serial.println("[COMMUNICATION] <SYNC> Master checking nodes...");

    for (uint8_t id = 1; id <= NUM_NODES; ++id)
    {
        bool success = false;
        uint32_t rtt = 0;

        for (uint8_t attempt = 0; attempt < 3; ++attempt)
        {
            // Construct PING message
            RFMessage msg;
            msg.from_id = NODE_ID;
            msg.to_id = id;
            strncpy(msg.payload, RF_PING_PAYLOAD, sizeof(msg.payload) - 1);
            msg.payload[sizeof(msg.payload) - 1] = '\0';

            // Stop listening before sending
            rf_stop_listening();
            bool sent = rf_send(id, msg, false); // No ACK requested
            rf_start_listening();

            // If send failed, retry
            if (!sent)
            {
                Serial.print(" - Node ");
                Serial.print(id);
                Serial.println(": SEND FAILED");
                delay(100);
                continue;
            }

            // Record send timestamp immediately after successful transmission
            uint32_t t_send = millis();
            Serial.print(" - PING to Node ");
            Serial.print(id);
            Serial.print(": sent at ");
            Serial.print(t_send);
            Serial.println(" ms");

            // Attempt to receive response within timeout
            RFMessage response;
            bool received = rf_receive(response, RF_RESPONSE_WAIT_MS);

            // Record receive timestamp after receive attempt
            uint32_t t_recv = millis();
            Serial.print(" - PING to Node ");
            Serial.print(id);
            Serial.print(": received at ");
            Serial.print(t_recv);
            Serial.println(" ms");

            // Validate response: correct sender, receiver, and payload prefix
            if (received &&
                response.from_id == id &&
                response.to_id == NODE_ID &&
                strncmp(response.payload, RF_PONG_PAYLOAD, 4) == 0)
            {
                rtt = t_recv - t_send;
                success = true;
                break;
            }

            delay(100); // Cooldown between attempts
        }

        if (success)
        {
            node_online[id] = true;
            node_rf_latency[id] = rtt / 2;

            Serial.print(" - Node ");
            Serial.print(id);
            Serial.print(": ONLINE | RTT = ");
            Serial.print(rtt);
            Serial.print(" ms | latency ≈ ");
            Serial.print(node_rf_latency[id]);
            Serial.println(" ms");
        }
        else
        {
            node_online[id] = false;

            Serial.print(" - Node ");
            Serial.print(id);
            Serial.println(": OFFLINE");
        }

        delay(200); // Prevent RF congestion
    }

    // Determine if any node was successfully contacted
    bool any_online = false;
    for (uint8_t id = 1; id <= NUM_NODES; ++id)
    {
        if (node_online[id])
        {
            any_online = true;
            break;
        }
    }

    // Compute the average latency across online nodes, and assign it to the offline nodes
    int32_t total_latency = 0;
    int32_t online_count = 0;
    float average_latency = 0.0f;
    for (uint8_t id = 1; id <= NUM_NODES; ++id)
    {
        if (node_online[id])
        {
            total_latency += node_rf_latency[id];
            online_count++;
        }
    }

    if (online_count > 0)
    {
        average_latency = static_cast<float>(total_latency) / online_count;
    }
    else
    {
        average_latency = 0.0f; // No nodes online, set to 0
    }

    // Assign average latency to offline nodes
    for (uint8_t id = 1; id <= NUM_NODES; ++id)
    {
        if (!node_online[id])
        {
            node_rf_latency[id] = static_cast<int32_t>(average_latency);
        }
    }

    // Update status flag
    return any_online;

#else // LEAF NODE
    Serial.println("[COMMUNICATION] <SYNC> Leaf waiting for PING...");

    while (true)
    {
        RFMessage msg;
        bool received = rf_receive(msg, 500);

        if (!received)
            continue;

        // Ensure message is intended for this node and is a valid PING
        if (msg.to_id != NODE_ID || strncmp(msg.payload, RF_PING_PAYLOAD, 4) != 0)
            continue;

        Serial.print("[COMMUNICATION] <SYNC> Received PING from Node ");
        Serial.println(msg.from_id);

        // Construct and send PONG response
        RFMessage response;
        response.from_id = NODE_ID;
        response.to_id = msg.from_id;
        strncpy(response.payload, RF_PONG_PAYLOAD, sizeof(response.payload) - 1);
        response.payload[sizeof(response.payload) - 1] = '\0';

        rf_stop_listening();
        rf_send(msg.from_id, response, false); // No ACK
        rf_start_listening();

        Serial.println("[COMMUNICATION] <SYNC> PONG sent. Leaf sync complete.");
        break;
    }

    return true;
#endif
}

bool rf_time_sync()
{
#ifdef GATEWAY
    Serial.println("[COMMUNICATION] <SYNC> Starting time sync broadcast to all nodes...");

    for (uint8_t id = 1; id <= NUM_NODES; ++id)
    {
        // Estimate master time just before sending to each node
        uint32_t master_time = static_cast<uint32_t>(Time.estimate_time_ms());

        RFMessage msg;
        msg.from_id = NODE_ID;
        msg.to_id = id;
        snprintf(msg.payload, sizeof(msg.payload), "%s %lu %d", RF_TIME_SYNC_HEADER, master_time, node_rf_latency[id]);

        Serial.print("[COMMUNICATION] <SYNC> Sending time to Node ");
        Serial.print(id);
        Serial.print(": ");
        Serial.println(msg.payload);

        rf_stop_listening();
        bool sent = rf_send(id, msg, false);
        rf_start_listening();

        if (!sent)
        {
            Serial.print("[COMMUNICATION] <SYNC> Failed to send to Node ");
            Serial.println(id);
            continue;
        }

        RFMessage ack;
        bool received = rf_receive(ack, RF_RESPONSE_WAIT_MS);

        if (received &&
            ack.from_id == id &&
            ack.to_id == NODE_ID &&
            strncmp(ack.payload, RF_TIME_ACK_HEADER, strlen(RF_TIME_ACK_HEADER)) == 0)
        {
            uint32_t synced_time = 0;
            sscanf(ack.payload + strlen(RF_TIME_ACK_HEADER) + 1, "%lu", &synced_time);
            Serial.print("[COMMUNICATION] <SYNC> Node ");
            Serial.print(id);
            Serial.print(" ACK received. Synced time = ");
            Serial.println(synced_time);
        }
        else
        {
            Serial.print("[COMMUNICATION] <SYNC> No ACK from Node ");
            Serial.println(id);
        }

        delay(100); // avoid RF congestion
    }

    node_status.node_flags.time_rf_synced = true;
    return true;

#else // LEAF NODE
    Serial.println("[COMMUNICATION] <SYNC> Leaf waiting for TIME_SYNC...");

    uint32_t master_time = 0;
    int latency = 0;
    uint32_t adjusted_time = 0;

    while (true)
    {
        RFMessage msg;
        bool received = rf_receive(msg, 1000);

        if (!received)
            continue;

        if (msg.to_id != NODE_ID || strncmp(msg.payload, RF_TIME_SYNC_HEADER, strlen(RF_TIME_SYNC_HEADER)) != 0)
            continue;

        // Parse time and latency from payload
        sscanf(msg.payload + strlen(RF_TIME_SYNC_HEADER) + 1, "%lu %d", &master_time, &latency);
        adjusted_time = master_time + latency;

        // Update local time
        Time.set_time_ms(adjusted_time);

        Serial.print("[COMMUNICATION] <SYNC> Time adjusted to ");
        Serial.println(adjusted_time);

        // Send ACK with adjusted time
        RFMessage ack;
        ack.from_id = NODE_ID;
        ack.to_id = msg.from_id;
        snprintf(ack.payload, sizeof(ack.payload), "%s %lu", RF_TIME_ACK_HEADER, adjusted_time);

        rf_stop_listening();
        rf_send(msg.from_id, ack, false);
        rf_start_listening();

        Serial.println("[COMMUNICATION] <SYNC> Time sync ACK sent.");
        break;
    }

    node_status.node_flags.time_rf_synced = (adjusted_time > 0);
    return node_status.node_flags.time_rf_synced;
#endif
}

In this project, time synchronization is divided into two categories:
1. Synchronization with the internet (via NTP)
2. Synchronization between local devices (via RF communication and RTT)

1. Internet Time Synchronization – Network Time Protocol (NTP)¶

NTP (Network Time Protocol) is used to synchronize local device time with an accurate time source on the internet. The basic principle is:

The local device sends a request and records the send time t1
The NTP server receives the request and records the server time t2
The server sends back the current time t3
The local device receives the response and records receive time t4

Using these timestamps, the local device can estimate the network delay and adjust its own time based on the server's response.

The related function in this project is:

`sync_time_ntp()`¶

This function uses the NTPClient library to retrieve the current Unix timestamp from the internet. Its core logic includes:

Initialize and connect to the NTP server
Retrieve the current UTC time (Unix timestamp)
Update the global Time variable with the retrieved value
Record the current runtime (e.g., from millis()) to enable millisecond-level tracking

This function is called at device startup or when re-synchronization is needed. While it is convenient, it depends on internet access and the precision is limited to seconds on platforms like Arduino.

2. Local Device Synchronization – Based on RTT and RF Communication¶

Because NTP precision is limited and requires network connectivity, we implement a high-precision local synchronization mechanism using RF (radio frequency) communication. The idea is:

One node (gateway) acts as the time reference
Other nodes (leaf nodes) synchronize their clocks through communication with the gateway
The process uses RTT (Round Trip Time) to estimate delay

The synchronization process includes two steps:

1. Checking Node Online Status and RTT Calculation¶

The gateway sends a PING message to each leaf node. Each leaf node responds immediately with a PONG. The gateway records:

t_send: time when PING was sent
t_recv: time when PONG was received

The round-trip time (RTT) is:

\[ RTT = t_{recv} - t_{send} \]

Then the RF latency (one-way delay) is estimated as:

\[ Latency = RTT / 2 \]

The gateway maintains two arrays:

node_rf_latency[]: stores estimated RF delay for each node
node_online[]: records whether each node is online (responding)

For nodes that do not respond, the average latency of the responding nodes is assigned as a fallback.

2. Synchronizing Time Based on RTT and Reference Time¶

After calculating delays, the gateway sends a TIME_SYNC message to each leaf node. The message includes:

The current time of the gateway
The calculated RF latency for that node

Upon receiving the message, each leaf node:

Extracts the reference time and delay from the message
Computes the adjusted local time as (reference time + delay)
Overwrites its local time with the adjusted value
Sends an ACK message back, including the new time for confirmation

This completes synchronization, and the node's time is now aligned with the gateway's time with millisecond-level accuracy.

Summary¶

Synchronization Type	Description	Pros	Cons
NTP Sync	Uses internet to get UTC time	Universal, no local reference required	Limited precision (seconds), network dependent
RF Local Sync	Uses RF communication + RTT calculation	High precision (milliseconds), network independent	Requires communication logic and node coordination

To balance precision and practicality, this project first uses NTP for initial time setup, followed by RF-based synchronization for high-precision alignment among nodes.

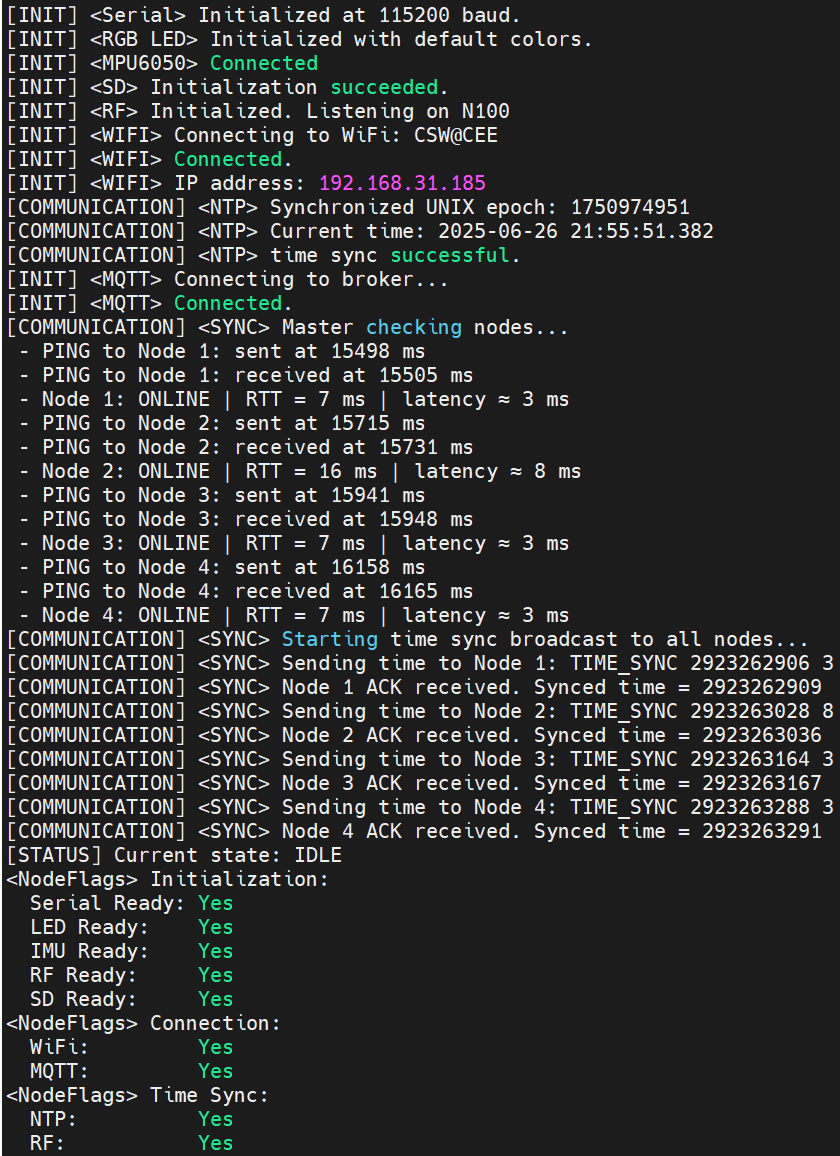

Serial Printout Example¶

Below is a typical startup process serial output example for the gateway node, showing key steps for time synchronization:
