SOLAR/BATTERY MANAGEMENT SYSTEM¶
The Solar Energy Manager A is a solar power management module supporting charging 3.7V 18650 lithium batteries via solar panels and USB interface. Features MPPT (Maximum Power Point Tracking) and charge-discharge protection with 5V/3.1A regulated output.
3D Model

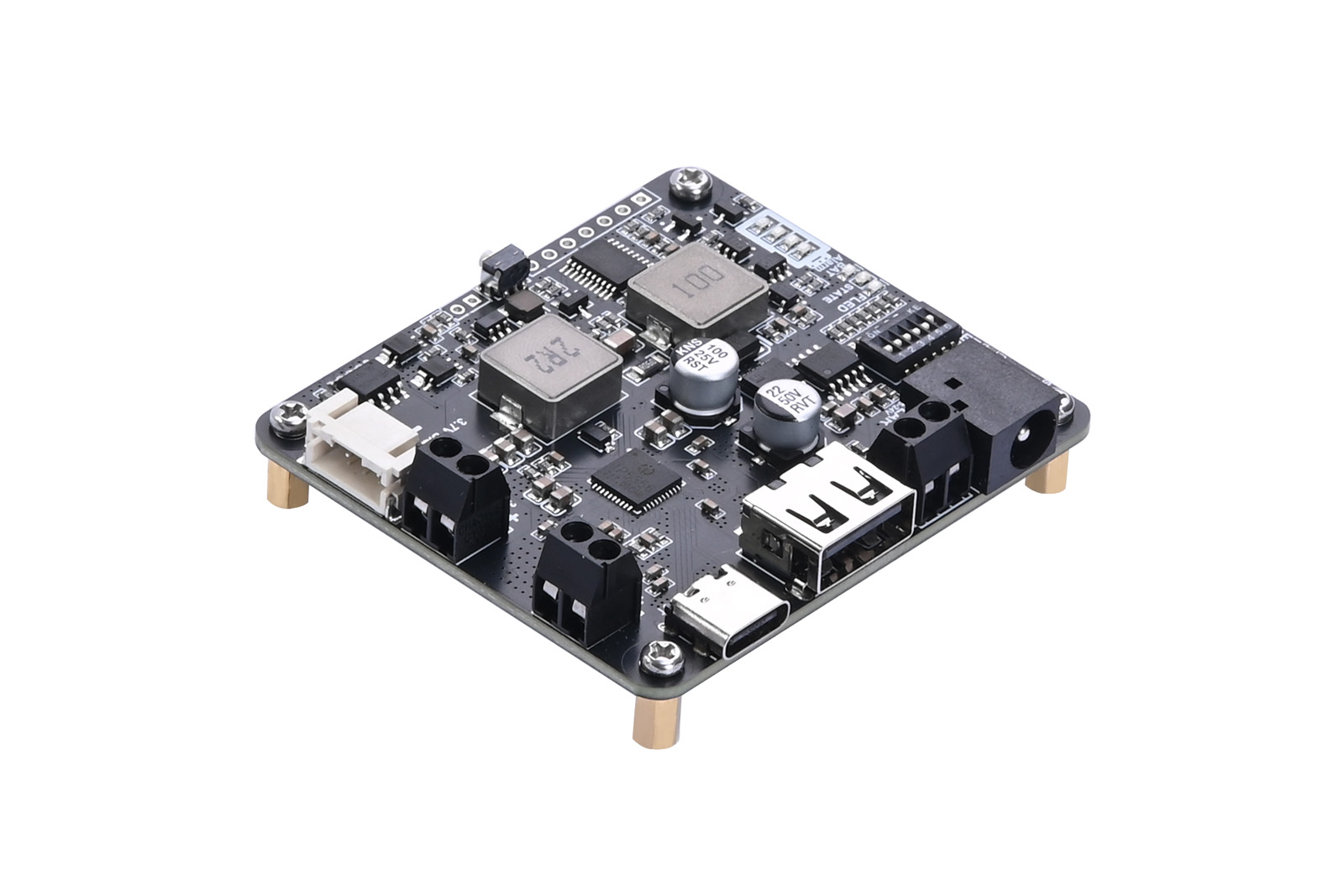

Appearance

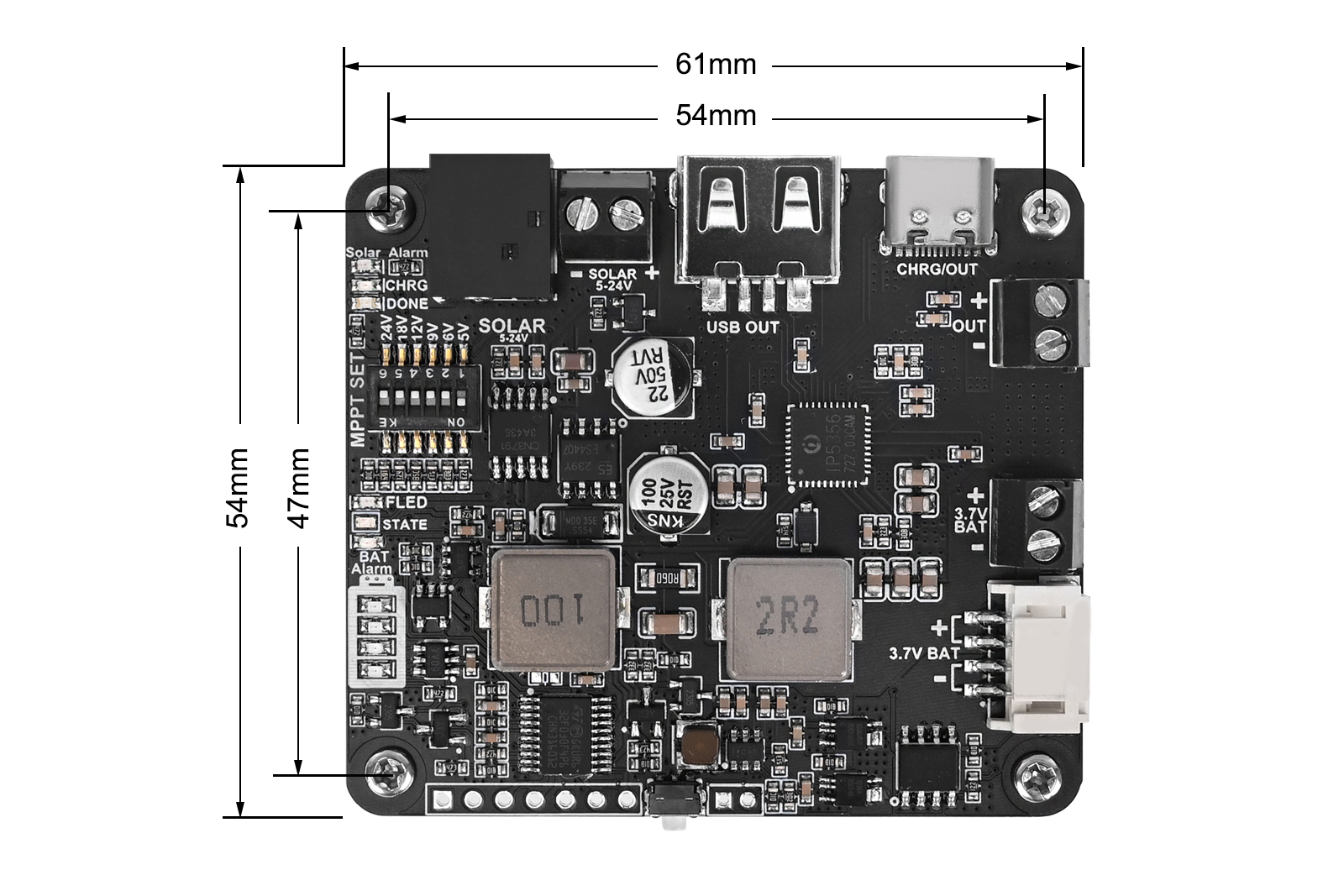

Dimensions
Key Specifications¶
| Parameter | Value |
|---|---|
| Solar Input | 5-24V |
| USB Output | 5V/3.1A |
| Battery | 3.7V 18650 Lithium |
| Charge Protection | 4.2V ±1% |
| Discharge Protection | 3.0V ±1% |
| Dimensions | 61mm × 54mm |
| Weight | 28g |
Resources¶
-
Product Information
Mounting Design¶
-
PCB Holes As shown in the image above, the PCB has mounting holes with a diameter of 3mm for M2.5 screw installation.
-
Screws The screws used are M2.5x5, with an outer diameter of 2.5mm and a length of 5mm, designed to be used with heat-set inserts.
-
Heat-Set Inserts The heat-set inserts are embedded in the 3D printed parts. During installation, the insert is heated and pressed into the pre-designed hole to ensure a secure fit. The specifications for the heat-set insert are M2.5x4x4, with an inner diameter of 2.5mm, a height of 4mm, and an outer diameter of 4mm.
