RGBLED NOTES

Introduction

Note

This section explains RGB control based on the node_rgb component. The current implementation targets SK6812MINI-C (SK6812-class) one-wire RGB LEDs, with IO3 as the default control pin. By changing the configuration, the same code can be used on other boards.

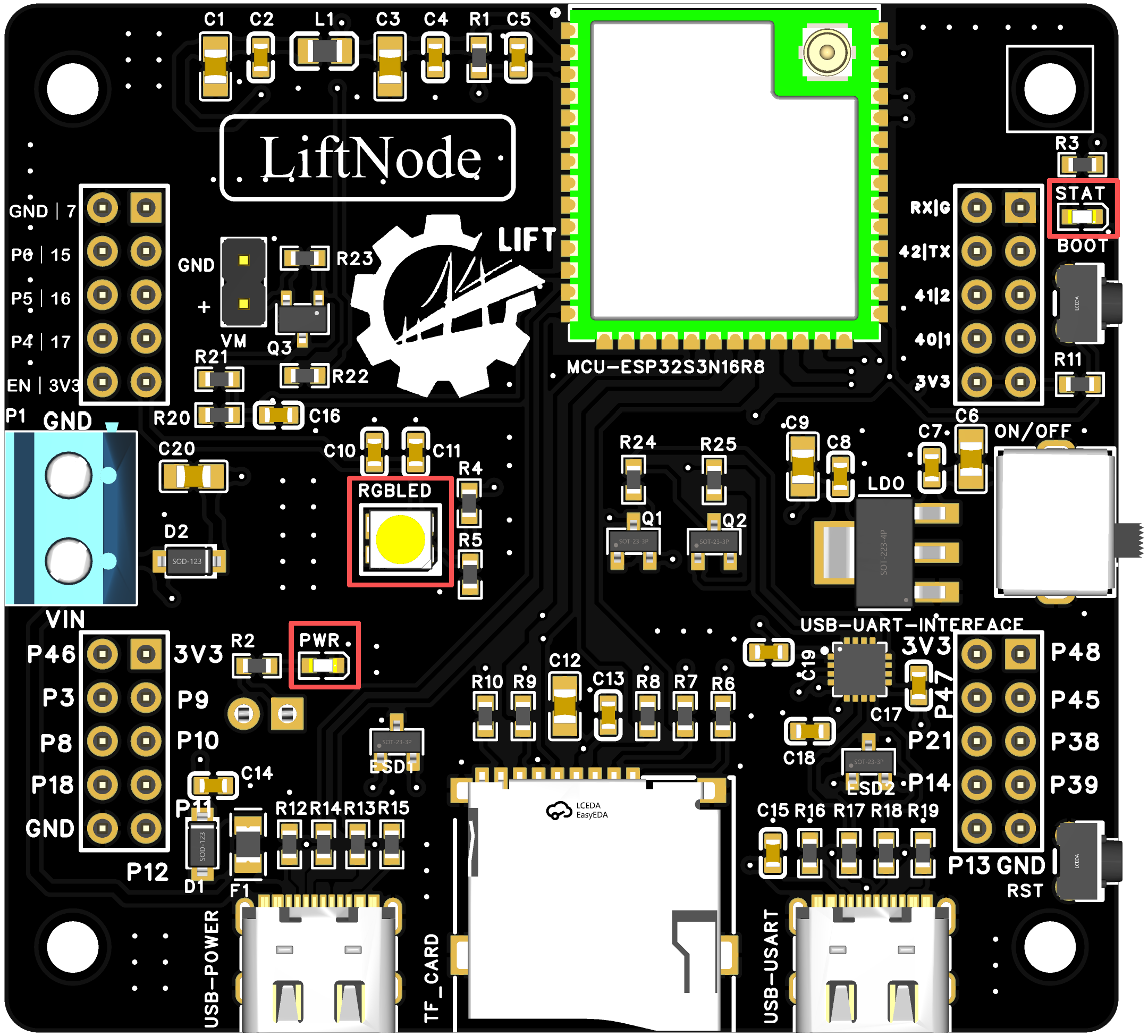

The RGBLED

LED

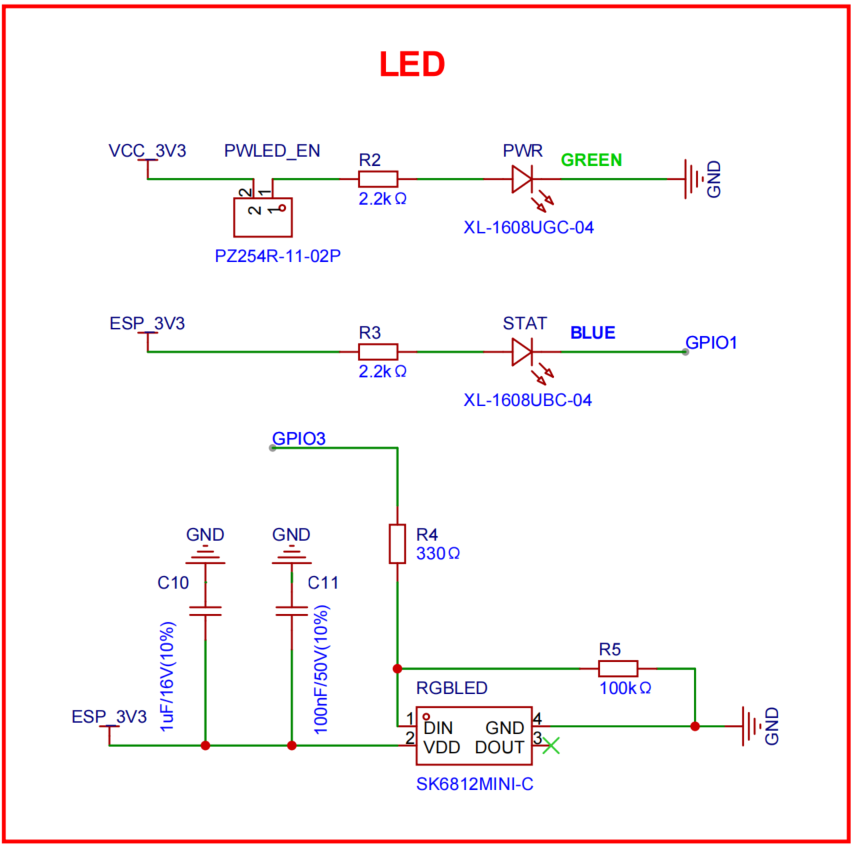

The Circuit Onboard

LED_CIRCUIT

As can be seen, the GPIO to control the LED is IO3.

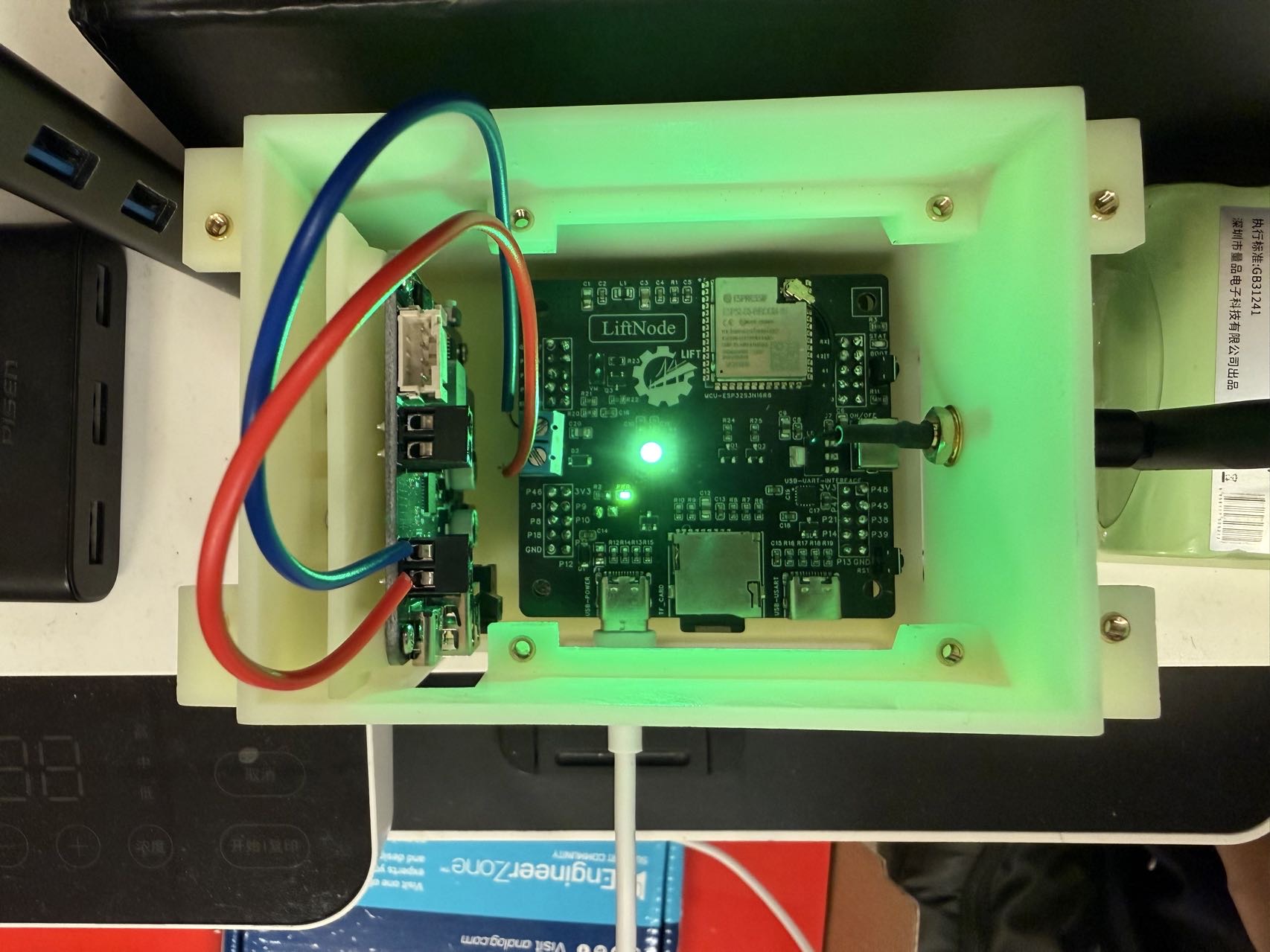

DEMO

Dependencies

RGB functionality depends on ESP-IDF components (RMT + LED Strip driver path). In the component CMakeLists.txt, you should at least declare:

  • driver
  • esp_driver_gpio

No additional third-party package is required, but make sure the ESP-IDF built-in led_strip capability is available in your project.

Key Functions

Function Prototype Explanation Example
esp_err_t node_rgb_init(const node_rgb_config_t *cfg) Initialize RGB with GPIO, LED count, and brightness settings node_rgb_config_t cfg = NODE_RGB_CONFIG_DEFAULT(); node_rgb_init(&cfg);
void node_rgb_deinit(void) Release the RGB device and clear display node_rgb_deinit();
void node_rgb_set_brightness(uint8_t v) Set brightness (0-255) node_rgb_set_brightness(128);
void node_rgb_rgb(uint8_t r, uint8_t g, uint8_t b) Set RGB color directly and refresh node_rgb_rgb(255, 64, 0);
esp_err_t node_rgb_str(const char *s) Set color by name (English case-insensitive, Chinese aliases supported) node_rgb_str("cyan");
void node_rgb_clear(void) Turn off all LEDs node_rgb_clear();
void node_rgb_chase_step(uint8_t r, uint8_t g, uint8_t b) One chase step: moving spot on multi-LED, R->G->B cycling on single LED node_rgb_chase_step(255, 0, 0);
void node_rgb_chase_reset(void) Reset chase state node_rgb_chase_reset();

Default Configuration

  • Default GPIO: IO3 (NODE_RGB_GPIO_DEFAULT)
  • Default LED count: 1
  • Default brightness: 96
  • LED count limits: 1 to 256 (out-of-range values are clamped)

Color String Notes

node_rgb_str() supports common color names, for example:

  • English: red, green, blue, yellow, cyan, magenta, purple, orange, pink, white, black, off
  • Chinese: 红, 绿, 蓝, 黄, 青, 品红, 紫, 橙, 粉, 白, 黑, 关

Input is trimmed for leading and trailing spaces. English names are case-insensitive.

Return Value Notes

  • ESP_OK: success
  • ESP_ERR_INVALID_ARG: invalid argument (for example, empty string or invalid config)
  • ESP_ERR_INVALID_STATE: device not initialized
  • ESP_ERR_NOT_FOUND: color string not recognized

Usage Tips

  • The node_rgb component itself does not include FreeRTOS task/delay logic. Control animation timing in the application layer (for example, with vTaskDelay).
  • For single-LED demos, use a named-color array cycle (for example, red -> orange -> yellow -> ...), consistent with the main.cpp example.
