ADXL367 Accelerometer Overview¶
Introduction¶
The ADXL367 is an ultra-low-power, 3-axis digital MEMS accelerometer from Analog Devices, designed for battery-powered, always-on monitoring, and event wake-up scenarios. While maintaining very low system power consumption, it provides stable 3-axis acceleration sensing for motion detection, posture recognition, activity monitoring, and edge-triggered IoT applications.
Compared with higher-precision but higher-power accelerometers, the ADXL367 emphasizes ultra-low-power, long-duration online operation. It is commonly used in a system architecture of low-power front-end screening plus event-triggered deep acquisition.
Key Features (Summary)¶
- Ultra-low power: typical 0.89 uA at 100 Hz; about 180 nA in motion wake-up mode; about 40 nA in standby
- Selectable measurement ranges: +-2 g, +-4 g, +-8 g
- Digital interfaces: SPI (4-wire) and I2C
- Resolution: 14-bit (with compatible 12-bit / 8-bit output formats)
- Low noise: typical noise density down to about 170 ug/sqrt(Hz)
- Configurable ODR: commonly up to 400 Hz
- Built-in FIFO: 512 samples
- Integrated temperature sensor and activity/inactivity detection capability
- Wide supply range: 1.1 V to 3.6 V
- Suitable for always-on monitoring, event triggering, and battery-powered devices
Typical Applications¶
- Always-on motion monitoring and interrupt wake-up
- Wearables and portable terminals
- Battery-powered IoT nodes
- Posture detection, drop/vibration event detection
- Low-power edge sensing and intelligent triggering
Technical Specifications (Quick Table)¶
| Parameter | Specification / Description |
|---|---|
| Measurement range | +-2 g, +-4 g, +-8 g |
| Resolution | 14-bit (compatible with 12-bit / 8-bit outputs) |
| Noise density | About 170 ug/sqrt(Hz) (typical) |
| Interface | SPI (4-wire), I2C |
| FIFO depth | 512 samples |
| Operating voltage | 1.1 V to 3.6 V |
| Power consumption (typ.) | 0.89 uA at 100 Hz; 180 nA (motion wake-up); 40 nA (standby) |
Evaluation Board¶

Wiring¶

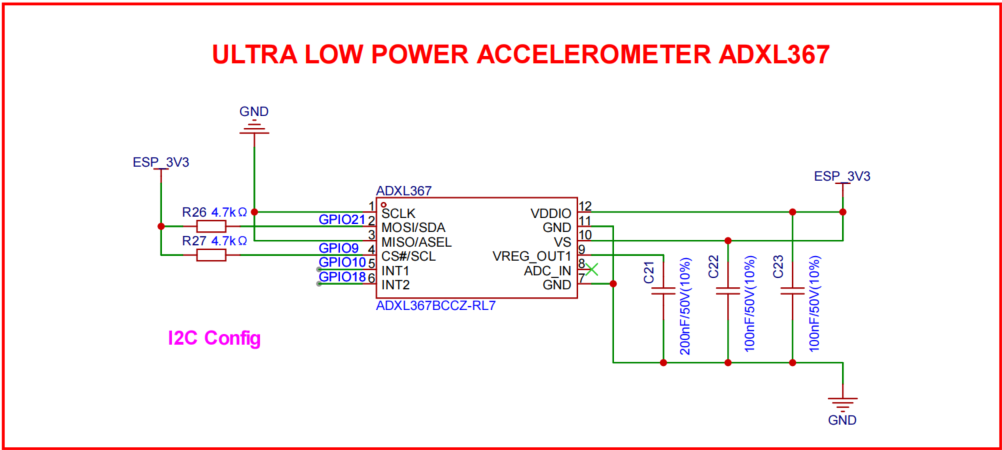

As shown above, ADXL367 uses I2C wiring in this project, avoiding SPI bus sharing with ADXL355.
The interface mapping is as follows:

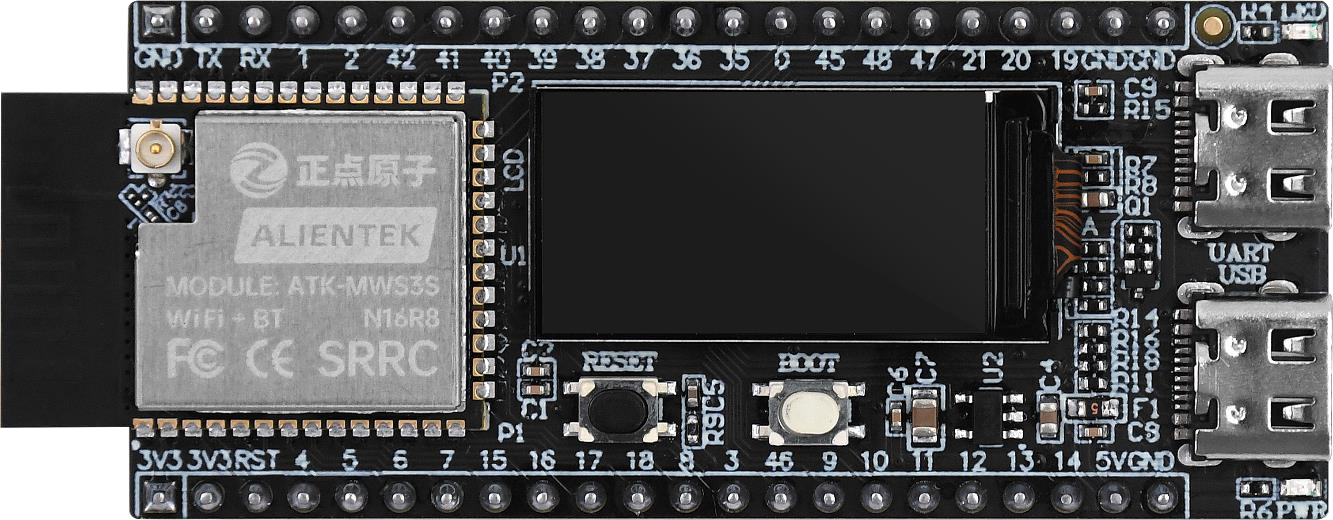

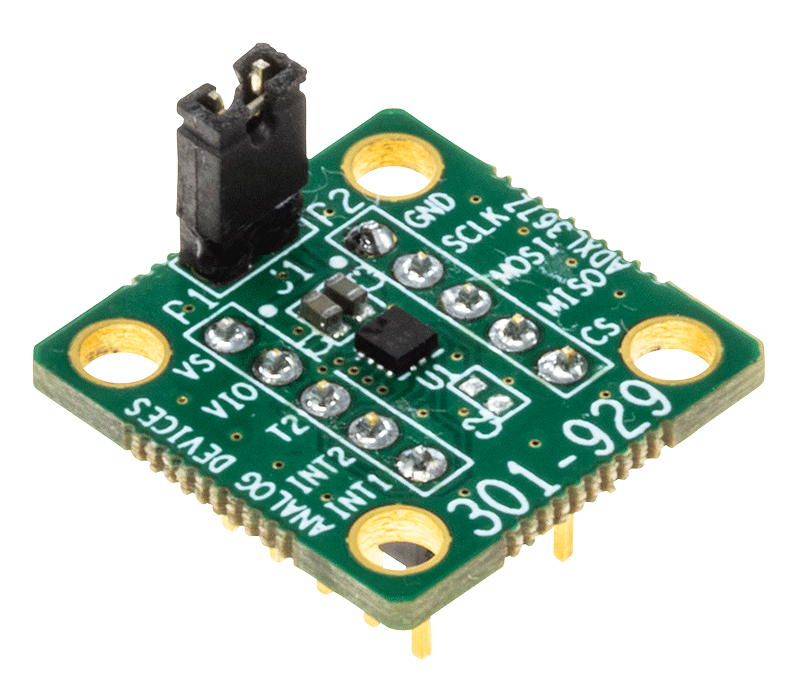

| ADXL367 Eval Board Pin | MCU Pin | Description |
|---|---|---|
| VS | 3.3 V | Power positive |
| VIO | 3.3 V | Power positive |
| T2 | NC | Not connected |
| INT2 | GPIO 18 | Interrupt output |
| INT1 | GPIO 10 | Interrupt output |
| CS | GPIO 9 | SCL in I2C mode |
| MISO | GND | Tie to GND in I2C mode |
| MOSI | GPIO 21 | SDA in I2C mode |
| SCLK | GND | Tie to GND in I2C mode |
| GND | GND | Power ground |
Official Driver Reference¶
-
ADXL367 Driver
ADXL367
Driver in this project (node_acc_adxl367)¶
What this block is for¶
The repository ships a dedicated ESP-IDF component that turns the ADXL367 into a node-local accelerometer service: one I2C address, one node_acc_adxl367_dev_t state object, and a consistent API for bring-up, configuration, raw reads, FIFO, interrupts, and on-chip motion detection. It is intended to sit between your application (or the bundled test harness) and the physical sensor.
Where it sits in software¶
All transfers use I2C only. The driver never calls the ESP-IDF I2C API directly; it goes through driver/node_i2c. Register writes, 14-bit packing, and timing-sensitive flows follow Analog’s reference implementation under driver/ref-adxl367 (same ideas as adxl367.c).
flowchart TB
subgraph application_layer [Application]
APP[Your firmware]
TST[node_acc_adxl367_test.c]
end
subgraph driver_layer [This component]
API[node_acc_adxl367.c / .h]
end
subgraph bus_layer [Bus abstraction]
I2C[node_i2c]
end
IC[(ADXL367)]
APP --> API
TST --> API
API --> I2C
I2C --> IC node_acc_adxl367_dev_t caches the open I2C handle plus the last known range, ODR, power mode, measurement mode (accel/temp mix), and FIFO mode so callers and the implementation stay consistent.
Repository layout¶
| Path | Role |
|---|---|
CODE/AIoTNode/driver/node_acc_adxl367/include/node_acc_adxl367.h | Public API: enums, device struct, function declarations. |
CODE/AIoTNode/driver/node_acc_adxl367/node_acc_adxl367.c | Register access, init/probe, XYZ/temp, FIFO drain, INT map, activity/inactivity. |
CODE/AIoTNode/driver/node_acc_adxl367/node_acc_adxl367_test.c | Phased tests and default demo entry; ties GPIO ISR to FIFO watermark where applicable. |
CODE/AIoTNode/driver/node_i2c | Shared I2C master wrapper used by this driver. |
CODE/AIoTNode/driver/ref-adxl367 | Reference behaviour and coefficients (e.g. temperature conversion). |
Functional map (what you can configure and read)¶
| Area | What the API covers |
|---|---|
| Lifecycle | Soft reset; probe DEVID / PARTID / REVID; init defaults to ±2 g, 100 Hz, measure mode, accel-only. |
| Dynamic range and rate | FILTER_CTL: ±2 g / ±4 g / ±8 g; ODR from 12.5 Hz to 400 Hz. |
| Power | Standby vs measure (POWER_CTL). |
| Measurement path | Accel-only, temp-only, or accel+temp via TEMP_CTL / ADC_CTL; raw XYZ after DATA_RDY; raw temp and Celsius. |
| Status | Read STATUS for data ready, FIFO flags, ACT/INACT/AWAKE bits. |
| FIFO | Mode (oldest saved, stream, triggered), format (XYZ with channel ID, etc.), watermark sample sets, entry count, drain parsed XYZ. |
| Interrupts | Route events to INT1 or INT2: data ready, FIFO watermark/ready/overrun, activity/inactivity, awake, and others per INTMAP layout. |
| Motion detection | Activity and inactivity thresholds and dwell (ABS or REL reference), axis mask, LINKLOOP, disable. |
Test phases (what is proven before you integrate)¶
The test source groups behaviour into phases so you can align application design with verified capability.
| Phase | Focus |
|---|---|
| 1 | Polling raw XYZ at the configured ODR. |
| 2 | Measurement modes; temp-only path rejects XYZ read (expected error path). |
| 3 | FIFO stream, watermark, draining XYZ by polling. |
| 4 | INT1 plus GPIO ISR: FIFO watermark driven from hardware line. |
| 5 | Linked activity/inactivity on INT2 (chip-side detection). |
| 6 | Default demo: simple still/motion discrimination in software from consecutive samples (distinct from hardware ACT). |
Pin macros and board-specific GPIO wiring for interrupts live in the test file; align them with the wiring tables earlier in this page.
Structural health monitoring (SHM): how this maps to monitoring tasks¶
SHM pipelines usually separate (a) long idle or low-rate observation from (b) higher-rate capture when the structure is excited or when an anomaly is suspected. The driver exposes hardware that matches that split.
| Mechanism in this stack | Typical SHM role |
|---|---|
| Low sensor and MCU duty via standby / low ODR | Continuous or scheduled health checks with minimal energy. |
| Hardware activity/inactivity | Event tagging or wake when vibration crosses a threshold (loosening, impact, traffic-induced motion). |
| FIFO + watermark + ISR | Capture a contiguous window of samples after a trigger without spinning on DATA_RDY (modal snapshot, post-event record). |
| ODR up to 400 Hz, three axes | Band-limited response for many civil structures; feed RMS, spectra, or band energy for modal bands. |
| On-chip temperature | Correlate apparent drift in features with ambient or self-heating. |
Suggested data-flow for a node (conceptual, not a single API call):
flowchart LR
A[Configure ODR / range / FIFO or ACT] --> B{Idle sampling or event}
B -->|Timer or link| C[Read STATUS / drain FIFO]
C --> D[Feature extraction<br/>RMS, bands, spectrum]
D --> E[Telemetry or local alarm] In short: the driver does not implement damage models; it gives you deterministic access to the ADXL367 features that SHM workflows typically need—threshold-based attention, buffered windows for dynamics, and environmental context via temperature—so higher-level SHM logic can stay in application code or on a gateway.
