ARTIFICIAL INTELLIGENCE¶

Note

This component delivers a lightweight neural-network inference + on-device training stack for edge devices. The whole library is written in C++17 with a minimal dependency footprint, specifically tuned for ESP32-S3 (WROOM-1U) class MCUs that ship with PSRAM.

Note

tiny_ai sits at the top of the TinyAuton middleware chain tiny_toolbox → tiny_math → tiny_dsp → tiny_ai. It reuses the tensor / matrix primitives in tiny_math and the spectral / filtering / resampling building blocks in tiny_dsp, forming an end-to-end pipeline from sensor capture to on-device inference.

COMPONENT DEPENDENCIES¶

# tiny_ai component CMakeLists.txt

set(src_dirs
    .
    core
    layers
    models
    quant
    train
    example
)

set(include_dirs
    .
    include
    core
    layers
    models
    quant
    train
    example/data
)

set(requires
    tiny_dsp
)

idf_component_register(
    SRC_DIRS    ${src_dirs}
    INCLUDE_DIRS ${include_dirs}
    REQUIRES    ${requires}
)

ARCHITECTURE & FUNCTIONALITY¶

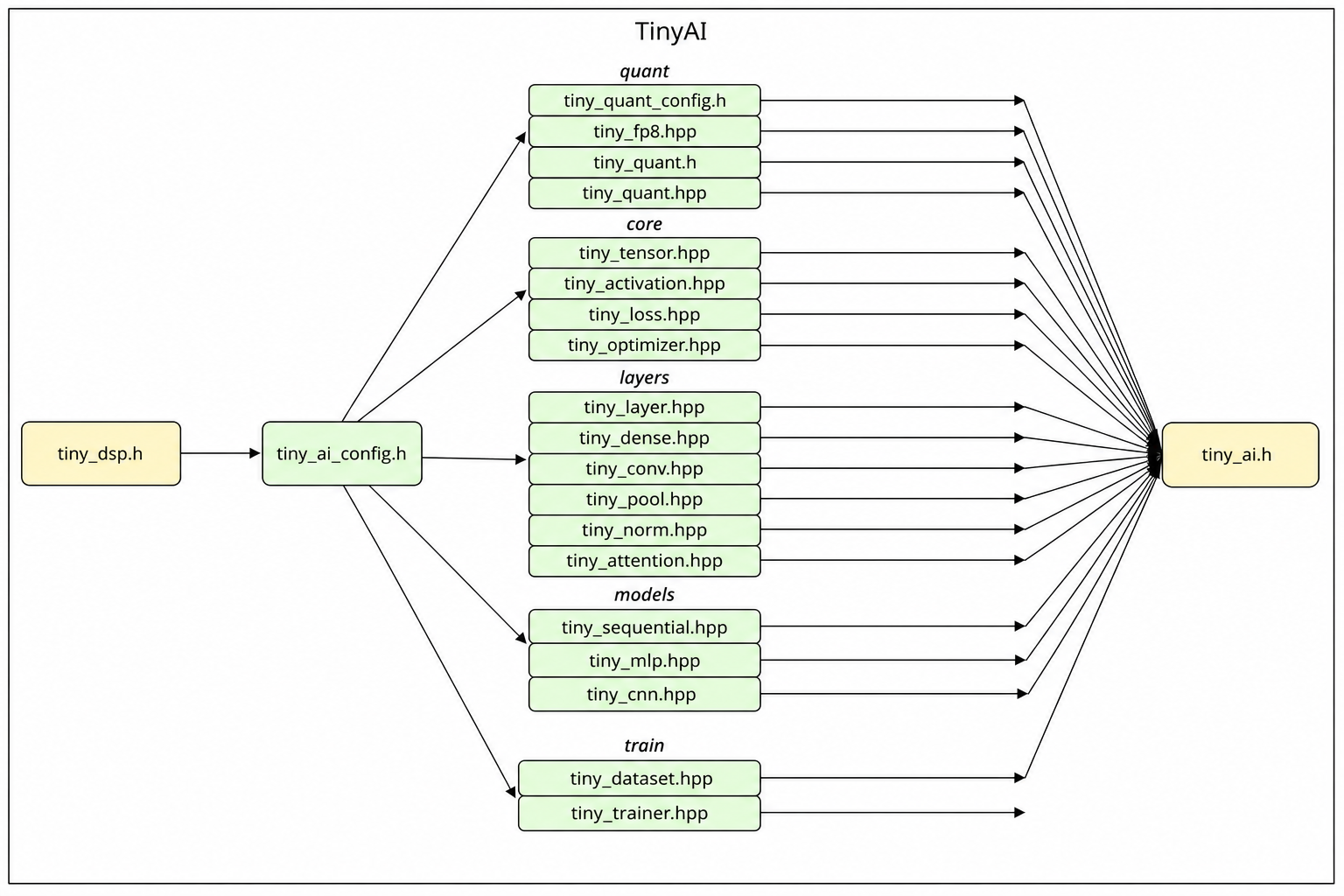

Dependency Diagram¶

Source Tree¶

tiny_ai/
├── include/
│   ├── tiny_ai.h               # unified entry header
│   └── tiny_ai_config.h        # platform / PSRAM / training switch / error codes
│
├── core/                       # tensor & training primitives
│   ├── tiny_tensor.{hpp,cpp}        # N-D (up to 4D) float32 tensor
│   ├── tiny_activation.{hpp,cpp}    # ReLU / LeakyReLU / Sigmoid / Tanh / Softmax / GELU / Linear
│   ├── tiny_loss.{hpp,cpp}          # MSE / MAE / CrossEntropy / BinaryCE
│   └── tiny_optimizer.{hpp,cpp}     # SGD (momentum + L2), Adam
│
├── layers/                     # neural-network layers
│   ├── tiny_layer.{hpp,cpp}         # Layer abstract + ActivationLayer / Flatten / GlobalAvgPool
│   ├── tiny_dense.{hpp,cpp}         # fully-connected layer (Xavier init)
│   ├── tiny_conv.{hpp,cpp}          # Conv1D / Conv2D (He init)
│   ├── tiny_pool.{hpp,cpp}          # MaxPool / AvgPool 1D & 2D
│   ├── tiny_norm.{hpp,cpp}          # LayerNorm
│   └── tiny_attention.{hpp,cpp}     # Multi-Head Self-Attention
│
├── models/                     # high-level containers
│   ├── tiny_sequential.{hpp,cpp}    # Sequential layer stack
│   ├── tiny_mlp.{hpp,cpp}           # MLP convenience wrapper
│   └── tiny_cnn.{hpp,cpp}           # CNN1D convenience wrapper (CNN1DConfig)
│
├── quant/                      # quantisation subsystem
│   ├── tiny_quant_config.h          # tiny_dtype_t / tiny_quant_params_t
│   ├── tiny_quant.{h,c}             # C API: INT8 / INT16 quant + INT8 dense forward
│   ├── tiny_quant.{hpp,cpp}         # C++ Tensor-level PTQ helpers
│   └── tiny_fp8.{hpp,cpp}           # software FP8 E4M3FN / E5M2
│
├── train/                      # training loop
│   ├── tiny_dataset.{hpp,cpp}       # Dataset: shuffle / split / next_batch
│   └── tiny_trainer.{hpp,cpp}       # Trainer: fit / evaluate
│
└── example/                    # end-to-end demos
    ├── data/iris_data.hpp           # Iris classification (150 × 4 → 3 classes)
    ├── data/signal_data.hpp         # synthetic 1-D signals (3 classes, 64 pts each)
    ├── example_mlp.cpp              # MLP + INT8 PTQ demo
    ├── example_cnn.cpp              # CNN1D + FP8 compression demo
    └── example_attention.cpp        # tiny Transformer (Iris)

FEATURE MATRIX¶

Feature	Macro / API	Description
Training switch	`TINY_AI_TRAINING_ENABLED`	Set to 0 for inference-only builds; backward paths and gradient buffers are removed
PSRAM allocation	`TINY_AI_USE_PSRAM`, `TINY_AI_MALLOC_PSRAM`	Large tensors live in 8 MB PSRAM, small / hot ones stay in internal SRAM
INT8 quant	`TINY_AI_QUANT_INT8`	Symmetric, min-max calibration, INT32-accumulated dense forward
INT16 quant	`TINY_AI_QUANT_INT16`	Symmetric, higher-precision fallback
FP8 quant	`TINY_AI_QUANT_FP8`	Software OCP E4M3FN (weights/activations) and E5M2 (gradients)

DESIGN HIGHLIGHTS¶

C++17 + namespace tiny: every class / function is wrapped inside namespace tiny. C interfaces (tiny_quant.h, error codes) stay in the global scope.
Shape conventions: Tensor supports up to 4 dimensions, row-major. Common layouts: [batch, ...]; Conv1D [B, C, L]; Conv2D [B, C, H, W]; Attention [B, S, E].
Backward caches: when training is enabled, layers stash the inputs / outputs they need (x_cache_, A_cache_, etc.) inside forward() so that backward() can skip recomputation.
Parameter collection: Sequential::collect_params() recursively collects (param, grad) pairs into a std::vector<ParamGroup>. The Optimizer::init() then sizes its momentum / Adam moment buffers off this list.
Quantisation path: PTQ workflow — calibrate(weight, dtype) → quantize(weight, buf, qp) → run inference with tiny_quant_dense_forward_int8().
